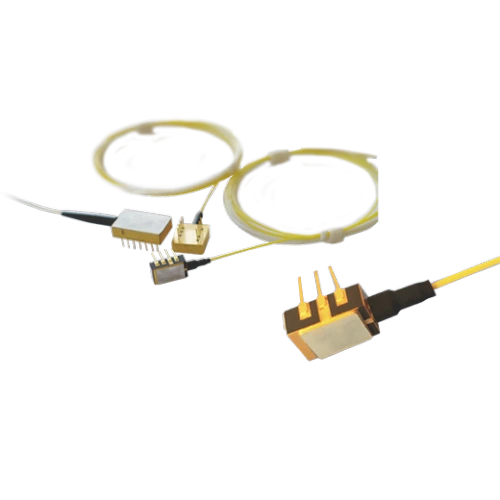

PIN-FET Optical Receiver Module
Tsawg suab nrov, siab linearity
Bandwidth Tunable kom phim lub luag haujlwm sib txawv
Metallized Pob nrog 8-pin / 14-pin Interchangeable Compatibility
Hauj lwm lawm
Ntsiab nta
- Tsawg suab nrov, siab linearity
- Bandwidth Tunable kom phim lub luag haujlwm sib txawv
- Metallized Pob nrog 8-pin / 14-pin Interchangeable Compatibility
- Tsim nyog rau cov ntawv thov uas xav tau kev ua tau zoo sib xws thiab kev ntseeg tau zoo
Daim ntawv thov
- FOG
- FOCS
- Lwm yam Fiber Optic Sensing
Khoom Taw Qhia
Tuam txhab tus PIN-FET optical receiver module ua optoelectronic conversion thiab teeb liab amplification. Nws cov ntsiab lus tseem ceeb - linear responsivity, yam tsawg kawg nkaus thiab saturation optical zog, tsaus voltage, bandwidth, thiab RMS suab nrov voltage - ua rau nws zoo haum rau analog kis systems xws li fiber optic sensing. Hauv fiber ntau optic gyroscopes (FOG), lub module hloov cov teeb liab tsis muaj zog kho qhov muag rov qab los ntawm Sagnac interferometer rau hauv lub teeb liab hluav taws xob. Nws ua haujlwm raws li cov khoom siv analog, tsis zoo li cov kev ua haujlwm digital siv hauv kev sib txuas lus.
Cim Technology
Lub tuam txhab yog ib lub tuam txhab siab - thev naus laus zis nrog kev kaw tag nrho- lub peev xwm los ntawm cov khoom siv fiber ntau winding thiab coils rau FOGs, fiber ntau / MEMS inertial khoom, IMU circuits, software, thiab cov khoom siv kuaj. Xaus-rau- kawg kev tswj xyuas kom zoo thiab txo cov nqi. Ua haujlwm raws li ISO9001 nrog cov txheej txheem nruj, nws ua kom cov khoom ntseeg tau thiab sib xws.
Tsis muaj
PIN-FET Optical Receiver Module Specifications
|
Yam khoom |
Tus nqi |
||
|
Kev khiav hauj lwm Wavelength Band (nm) |
1290 ~ 1560 |
||
|
Linear Responsivity (V / μW) |
0.72 |
0.36 |
0.18 |
|
Linear Saturation Optical Fais Fab (μW) |
Ntau tshaj los yog sib npaug 4 |
Ntau dua lossis sib npaug li 8 |
Ntau dua lossis sib npaug li 16 |
|
Linear Yam tsawg kawg nkaus Optical Power (μW) |
Tsawg dua los yog sib npaug li 0.03 |
Tsawg dua los yog sib npaug li 0.05 |
Tsawg dua los yog sib npaug li 0.1 |
|
Linearity (%) |
±3 |
||
|
Transimpedance (KΩ) |
800 |
400 |
200 |
|
3 dB Bandwidth (MHz) |
4~10 |
||
|
RMS suab nrov Voltage (mV) |
Tsawg dua los yog sib npaug li 0.5 |
||
|
Pob Hom thiab Dimensions (excl. pins) |
Saib cov khoom kos duab |
||
|
Hom Pigtail |
SM/PM, φ125μm/80μm, L{2}}m |
||
|
Ua haujlwm kub (degree) |
-45~+70 |
||
|
Cia kub (degree) |
-55~+85 |
||
Daim duab kos duab
|
S-Tom Pob |
D-Tom Pob |
|
F-Tom Pob |
G-Tom Pob |
Xaiv lub rooj
|
Khoom Code |
Hom pob |
Transimpedance |
Tawm Pigtail |
|
TSXF01 |
8 pin |
200K |
125/250 SM Fiber ntau |
|
TSXH02 |
8 pin |
400k |
125/250 SM Fiber ntau |
|
TXF 02 |
Mini 8 pin |
200K |
80/165 SM Fiber ntau |
|
TSI 01 |
Mini 8 pin |
400k |
80/165 SM Fiber ntau |
|
TWG 02 |
Mini 6 pin |
200K |
80/165 SM Fiber ntau |
|
TXJ 02 |
14 pin |
800k |
125/250 SM Fiber ntau |
