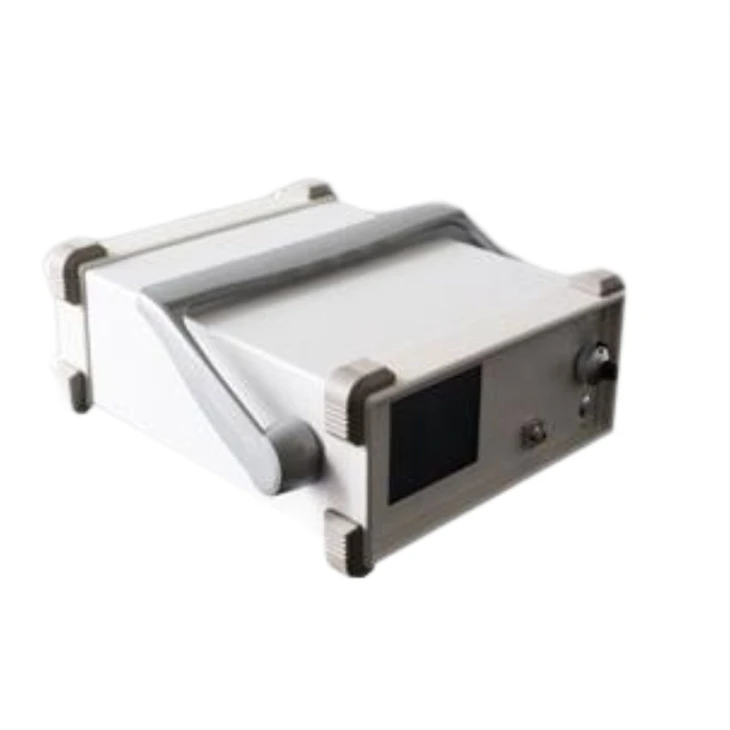

Tc - dfb series 1550nm Dfb Laser Tau
Lub tc - DFB series 1550nm DFB Laser Los Saws High {2} Kev tswj DFB, thiab lub zog sib cais, ua rau muaj kev ruaj ntseg siab.
Hauj lwm lawm
Khoom Piav Qhia
Lub tc - DFB series 1550nm DFB Laser Los Saws High {2} Kev tswj DFB, thiab lub zog sib cais, ua rau muaj kev ruaj ntseg siab. Nws tuaj yeem yog qhov dav siv hauv kev ntsuam xyuas fiber ntau, cov ntsuas hluav taws xob muaj zog, CWDM thiab DWDM system sim, thiab lwm yam.
Nta
● Xaiv nws tau wavelength
● Cov zis hluav taws xob muaj zog yeem
● Ua - hauv ecenerical butterator
● Ntau hom kev ua haujlwm muaj
● Module thiab Desktop Ntim
Cov Ntawv Thov
● Laser ranging
● noob teeb pom kev
Inses Kev Sib Txuas Lus Fiber Optic
● ● Tshuab Sensing Fiber Optic
Ua Kom Parameter
|
Tsis |
Cov cim |
Yam Tsawg Nqi |
Cov nqi raug |
Ntau tus nqi |
Ib yam |
|
Ua haujlwm wavelength |
l |
1547 |
- |
1560 |
nm |
|
Tso Tawm Kho Qhov Muag Hluav Taws Xob |
Tus nees |
10 |
20 |
100 |
mw |
|
Kab Dav |
DL * |
- |
1 |
- |
Tus mhz |
|
Ntug Hom Kev Kho Mob |
Smsr |
30 |
35 |
- |
dB |
|
Kev Rho Teeb |
ISO |
30 |
35 |
- |
dB |
|
Tus txheeb ze lub suab nrov |
Rov nrho |
- |
- |
-150 |
DB / HZ |
|
Polarization Sij Hawm Dua Zaum * |
Er |
15 |
20 |
|
dB |
|
Lub Hwjchim Ruaj |
PSs |
|
|
±0.005 |
db / 5min |
|
PLs |
|
|
±0.01 |
db / 8h |
|
|
Tso Tawm Kev Tawm |
ISO |
30 |
35 |
|
dB |
|
Cov lus qhia |
|
Desktop |
Module |
||
|
Sab nraud Qhov Ntsuas Sab Nraum L X W |
|
320 × 220 × 90 hli |
80 × 100 × 100 mm |
||
|
Lub Hwj Chim |
|
Ac 220V ± 10% 30W |
DC +5 v |
||
|
Tsim Tawm Fiber |
|
Smf / pmf |
|||
|
Ua Haujlwm Hom |
|
Cw |
|||
|
Qhov tseem ceeb ntawm qhov muag |
|
FC / PC FC / APC lossis cov neeg siv teev tseg |
|||
* Laser tso tawm yog txuas nrog polarization tswj cov fiber ntau
Txwv qhov xwm txheej
|
Tsis |
Cov cim |
Ib yam |
Yam Tsawg Nqi |
Cov nqi raug |
Ntau tus nqi |
|
Tsev hauj lwm kub |
Lub ncov roob |
ºC |
-5 |
|
55 |
|
Cia kub |
Yst |
ºC |
-40 |
|
85 |
|
Kev vaum |
P |
% |
5 |
|
90 |
Cov ntaub ntawv xaj
|
Tc |
DFB |
15 |
X |
Xx |
X |
Xx |
Xxx |
|
|
DFB |
Wavelength: 15-1550nm DWDM wavelength tuaj yeem cim |
Ntim: M - module D - desktop |
Lub Zog: 10-10mw …… 40--40mw 50 --- 50mw 60 --- 63mw 100--100MW |
Yiv: P --- PMF S --- smf |
Optic Txuas: FP --- FC / PC Fa --- FC / APC SP --- Cov neeg siv tau teev tseg |
Kab dav: khoob --- 5-10mHz 2m --- 2-5mHz 1m ---- 1mHz 500k - 500kHz 200K-200kHz 100k-100kHz 50K ---- 50KHZ |
Raug spectrum
Sab hauv qauv
