WM Txheem Sib Tw Series





Hydrostatic siab: 140 MPa

Tsim Nyog Ntsuas Siab: 80 MPA

Nominal voltage: 600 VDC / AC

Nominal tam sim no: 10a rau ib qho kev sib cuag (nce txog 50a rau txuas)

Rwb Cevhij Kuj: >200 MΩ

Kev sib cuag: <10 mΩ

Ntub Mating Cycles: >500 zaug

Kev Ua Haujlwm Kub (Underwater): -4℃rau +60 degree

Kev khiav hauj lwm kub (hauv huab cua): -40℃rau +60 degree







Lub qhov (socket) lub tsev:
Tus qauv - 316 l stainless hlau
Yeem - 6061} aluminium alloy nrog tawv anodized tiav, lossis peek

Tshuaj insulator: Neoprene

Kev sib cuag: Kub {- plated tooj liab alloy

Txoj hauj lwm tus pin: 316L stainless hlau

O {- rings: Nitrile roj hmab

Txoj hluas: Neoprene los yog polyurethane Jacketed cable nrog 18AWG / 16AWG CLIPSS (Txuj)

Qhov rai tw: PTFE insulated, 18oos





Tus naj npawb ntawm cores	BH Kab Kab	1l Kab Kab	Tam sim no {- nqa
1	18AWG	18AWG	16A
2	18AWG	16AWG / 18AWG	Ib qho tseem ceeb 10a (max. 20} ib qho txuas)
3	18AWG	16AWG / 18AWG	Ib qho tseem ceeb 10a (max. 30} ib qho txuas)
4	18AWG	16AWG / 18AWG	Ib qho tseem ceeb 10a (max. 30} ib qho txuas)
5	18AWG	18AWG	Ib qho tseem ceeb 10a (max. 30} ib qho txuas)
6	18AWG	16AWG / 18AWG	Ib qho tseem ceeb 10a (max. 50} ib qho txuas)
8	18AWG	16AWG / 18AWG	Ib qho tseem ceeb 10a (max. 50} ib qho txuas)
10	18AWG	18AWG	Ib qho tseem ceeb 10a (max. 50} ib qho txuas)
12	18AWG	18AWG	Ib qho tseem ceeb 10a (max. 60} ib qho txuas)
16	18AWG	18AWG	Ib qho tseem ceeb 10a (max. 60} ib qho txuas)
25	3x18awg / 22x22awg	18AWG	Ib Core 3x10a / 22X5A (Max. 60} ib tag nrho cov txuas)





WM Txuj Ci Round -2,3,4,5 Cov Tub Ntxhais Dim

WM txheem puag ncig {{}}, 3,4, 5-ntxhais hu ua kev sib tham

Tus pin ntsej muag



WM txheem puag ncig - 6}, 8, 10-coreqho loj



WM txheem puag ncig -6,8, 10-tseem ceeb hu rau kev sib cuag

Tus pin ntsej muag

WM Txheem Qasi - pirrcular txoj cai kaum {}}, 8,10 core qhov ntev

Nco tseg:

Xauv tes tsho yuav tsum tau hloov pauv mus rau 30.5 / 21 kom haum rau RA txuas.

Nco tseg:

Thaum siv nrog lub plhaub hlau 2400 lub tshuab xauv tes yuav tsum tau hloov mus rau 23.6 / 30.5 kom haum rau RA txuas no.



WM Txuj Ci Round Sab xis sab xis - 6}, 8,.10 tseem ceeb hu rau kev sib cuag

Tus pin ntsej muag

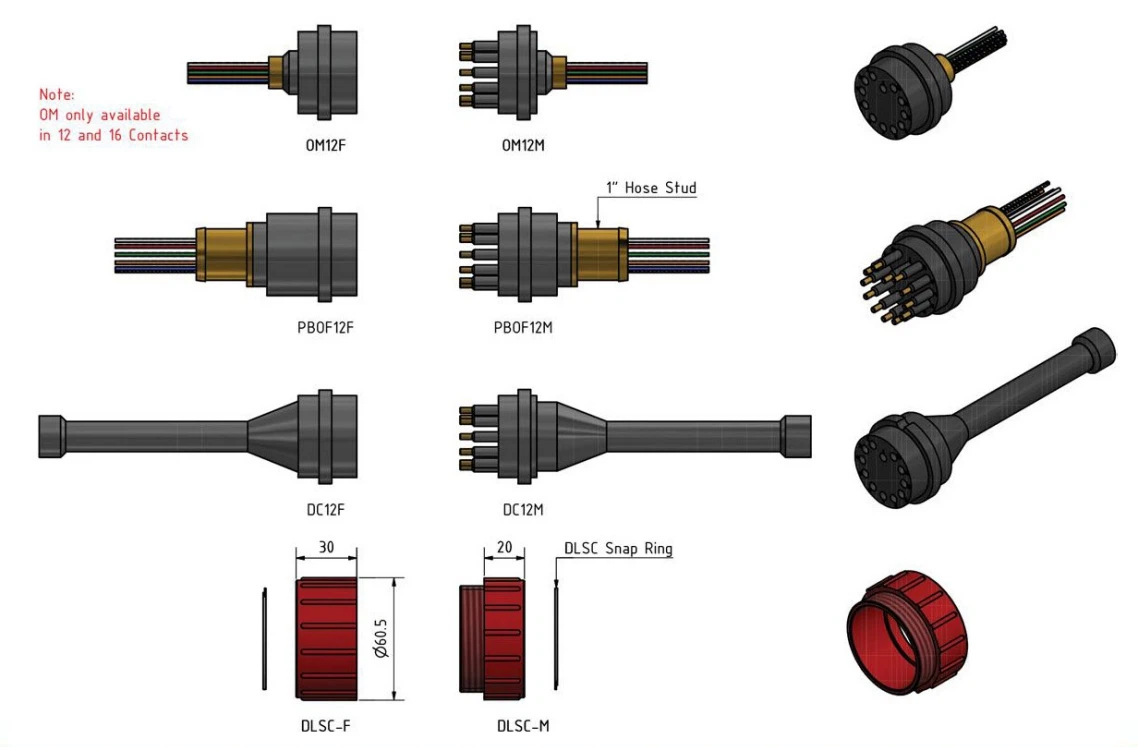

WM txheem puag ncig - 12}, 16,25 Cov Tub Ntxhais Dimension

WM txheem puag ncig - 12}, 16,25 kev tiv thaiv tus pin

Tus pin ntsej muag







1. Tshwj Xeeb Ntawm Kev Ua Haujlwm
Peb cov txuas txuas tau ua rau muaj kev tsim kom muaj hydrostatic nias mus txog 140 mpa, ua rau lawv zoo tagnrho rau kev sib sib zog nqus {-}}}}}}}}}}}}}}}}} cov chaw siab. Nrog kev ntsuas tsim nyog ntawm 80 MPA, txhua pawg kom ntseeg tsis tau kev nyab xeeb thiab kev ntseeg tau.

2. Kev Lag Luam -}} ua yeeb yam ua haujlwm
Nyob ntawm 600 VDC / AC thiab txhawb nqa txog 50a tam sim no, peb cov tswv yim tseem ceeb rau kev ua kom ruaj khov thiab ruaj khov zog ntawm kev xa khoom ntawm kev ua haujlwm ntawm kev lag luam subsea thiab kev lag luam.

3. Cov ntaub ntawv hwm rau cov chaw hnyav
Ua nrog 316L stainless hlau lossis anodized 6061 Alloy alloy, thiab Peek kev puas tsuaj, thiab huab siv tshuaj lom neeg tawm tsam, thiab huab cua sov los ntawm -40 kev kawm ntawv mus rau {}}} degree.

4. Ntev -} Lub Sij Hawm Durability
With over 500 wet mating cycles, gold-plated contacts, and high insulation resistance (>200 mω), peb cov txuas txuas kom tau txais kev pabcuam ntev nrog kev saib xyuas tsawg.

5. Flexible Ntau -} cov tswv yim configurations
Txhawb nqa txog 25 cores thiab ntau yam tam sim no- nqa cov hluav taws xob nrog kev xav tau thoob plaws hauv dej hauv qab, thiab cov tshuab sib txuas lus sab nrauv.

6. Cov kws tshaj lij kev lag luam engineering
Txoj cai -} Angle txawv, Xauv Tes Kev Kho Mob, thiab cov kev sib koom ua ke kom muaj kev sib xyaw ua ke kom du.

7. Txhim Kho Cov Qauv Raug Tsim
Txhua cov khoom hauv cov khoom lag luam nruj thiab tswj tau zoo, ua kom muaj kev sib xws thiab kev ntseeg tau rau lub hom phiaj {}} tseem ceeb.
