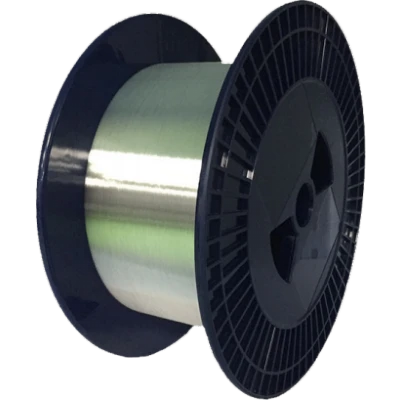

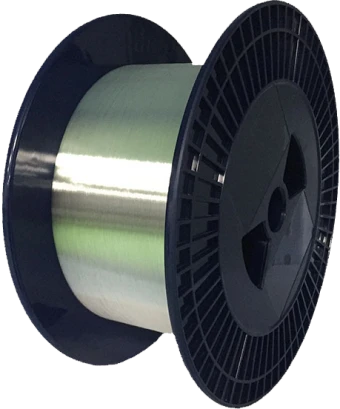

G652 Tsawg-Poob Ib Leeg-Hom Fiber
1310nm Tau tshaj
Ib qho yooj yim Txheej Stripping
Tsawg Splicing Poob
Hauj lwm lawm
Ntsiab nta
- Full -Band Transmission
- Tsawg Attenuation, Ntev Ntev
- DWDM/CWDM Compatible
- 1310nm Tau tshaj
- Ib qho yooj yim Txheej Stripping
- Tsawg Splicing Poob
Daim ntawv thov
- Multi-Protocol Compatibility
- Wavelength Division Multiplexing (WDM)
- Peb -Tier Network
- Kev Pabcuam Integrated
- Ultra-Ntev-Haul Transmission
- Tag nrho Cable Compatibility
Khoom Taw Qhia
Lub Tuam Txhab Tsawg-Poob Ib Leeg-Hom Fiber muab qhov kev ua kom zoo sib sib zog nqus ntawm attenuation thoob plaws tag nrho 1260-1625 nm kev khiav hauj lwm band, ua tiav qhov poob qis qis ntawm txhua lub wavelength piv rau tus qauv ib zaug - hom fiber ntau. Thaum khaws tag nrho -band muaj peev xwm ua haujlwm, nws txo qis qis qis, ua rau nws tshwj xeeb tshaj yog tsim rau nqa ntau-channel kev pabcuam kev kub ceev tshaj ib qho fiber ntau hauv cov xwm txheej uas xav tau kev sib kis ntau dua thiab siv nyiaj ntau dua.
Qhov qis-Poob SMF ua raws lossis tshaj qhov kev qhia tshwj xeeb ntawm ITU-T G.652.D thiab IEC 60793-2-50 Hom B1.3 optical fiber ntau cov qauv.
Cim Technology
Lub tuam txhab yog ib lub tuam txhab siab - thev naus laus zis nrog kev kaw tag nrho- lub peev xwm los ntawm cov khoom siv fiber ntau winding thiab coils rau FOGs, fiber ntau / MEMS inertial khoom, IMU circuits, software, thiab cov khoom siv kuaj. Xaus-rau- kawg kev tswj xyuas kom zoo thiab txo cov nqi. Ua haujlwm raws li ISO9001 nrog cov txheej txheem nruj, nws ua kom cov khoom ntseeg tau thiab sib xws.
Tsis muaj
G652 Tsawg-Poob Ib Leeg-Mod Fiber Specifications
|
Parameter |
Qhov xwm txheej |
Tus nqi |
|
|
Optical yam ntxwv |
|||
|
Attenuation [dB/km] |
1310nm ua |
Tsawg dua lossis sib npaug li 0.32 |
|
|
1383nm (Tom qab Hydrogen Aging) |
Tsawg dua lossis sib npaug li 0.31 |
||
|
1 550nm |
Tsawg dua lossis sib npaug li 0.18 |
||
|
1625nm ua |
Tsawg dua los yog sib npaug li 0.20 |
||
|
Attenuation Variation vs. Wavelength [dB/km] |
1285-1330nm, txheeb ze rau 1310nm |
Tsawg dua los yog sib npaug li 0.03 |
|
|
1525-1575nm, txheeb ze rau 1550nm |
Tsawg dua lossis sib npaug li 0.02 |
||
|
Chromatic Dispersion hla Wavelength Range [ps/(nm·km)] |
1285-1340 nm |
-3.5 rau 3.5 |
|
|
1 550nm |
Tsawg dua los yog sib npaug li 18 |
||
|
1625nm ua |
Tsawg dua los yog sib npaug 22 |
||
|
Zero-Dispersion Wavelength(λ0) [nm] |
-- |
1300~1324 |
|
|
Zero-Dispersion Slope(S0) [ps/(nm2·km)] |
-- |
Tsawg dua lossis sib npaug li 0.092 |
|
|
Zero-Dispersion SlopeTypical [ps/(nm2·km)] |
-- |
0.086 |
|
|
Polarization Hom Dispersion (PMD) (PMD) [ps/√km] |
Tus kheej Fiber Max. |
-- |
Tsawg dua los yog sib npaug li 0.1 |
|
Fiber Link Tus Nqi (M=20, Q=0.01%) |
-- |
Tsawg dua los yog sib npaug li 0.06 |
|
|
Hom |
-- |
0.04 |
|
|
Kab txiav - tawm Wavelength (λcc) [nm] |
-- |
Tsawg dua los yog sib npaug rau 1260 |
|
|
Hom Field Diameter (MFD) [μm] |
1310nm ua |
8.7~9.5 |
|
|
1 550nm |
9.8~10.8 |
||
|
Cov txiaj ntsig Group Index (Nef) |
1310nm ua |
1.466 |
|
|
1 550nm |
1.467 |
||
|
Point Discontinuity [dB] |
1310nm ua |
Tsawg dua los yog sib npaug li 0.05 |
|
|
1 550nm |
Tsawg dua los yog sib npaug li 0.05 |
||
|
Parameter |
Qhov xwm txheej |
Tus nqi |
|
|
Geometrical yam ntxwv |
|||
|
Cladding Txoj kab uas hla [μm] |
-- |
125.0±0.7 |
|
|
Cladding Non-Circularity [%] |
-- |
Tsawg dua los yog sib npaug rau 1.0 |
|
|
Txheej Diameter [μm] |
-- |
235~245 |
|
|
Txheej / Cladding Concentricity yuam kev [μm] |
-- |
Tsawg dua los yog sib npaug rau 12.0 |
|
|
Txheej Tsis yog -Circularity [%] |
-- |
Tsawg dua los yog sib npaug rau 6.0 |
|
|
Core/Cladding Concentricity yuam kev [μm] |
-- |
Tsawg dua lossis sib npaug li 0.6 |
|
|
Curl (Radius) [m] |
-- |
Ntau tshaj los yog sib npaug 4 |
|
|
Delivery Length [km/spool] |
-- |
Mus txog 50.4 |
|
|
Environmental yam ntxwv 1310nm, 1550nm thiab 1625nm |
|||
|
Kub -Induced Attenuation [dB/km] |
-60℃rau 85 degree |
Tsawg dua los yog sib npaug li 0.05 |
|
|
Kub -Cycling Attenuation [dB/km] |
-10℃txog 85 degree, 98% txheeb ze humidity |
Tsawg dua los yog sib npaug li 0.05 |
|
|
Dej Immersion Attenuation [dB/km] |
23 degree, 30 hnub |
Tsawg dua los yog sib npaug li 0.05 |
|
|
Damp Thaum tshav kub kub attenuation [dB/km] |
85 degree, 85% txheeb ze humidity, 30 hnub |
Tsawg dua los yog sib npaug li 0.05 |
|
|
Qhuav Heat Aging [dB/km] |
85 degree, 30 hnub |
Tsawg dua los yog sib npaug li 0.05 |
|
|
Mechanical yam ntxwv |
|||
|
Pov thawj Test Level |
Absolute Force [N] |
-- |
Ntau dua lossis sib npaug rau 9.0 |
|
Txoj kev [%] |
-- |
Ntau dua lossis sib npaug rau 1.0 |
|
|
Kev ntxhov siab [kpsi] |
-- |
Ntau tshaj los yog sib npaug rau 100 |
|
|
Macro-Bending Poob [dB] |
100 tig, radius 30mm |
1625nm ua |
Tsawg dua los yog sib npaug li 0.05 |
|
100 tig, radius 25mm |
1310nm thiab 1550nm |
Tsawg dua los yog sib npaug li 0.05 |
|
|
1 tig, 16mm |
1 550nm |
Tsawg dua los yog sib npaug li 0.05 |
|
|
Txheej Sawb Force [N] |
Yam Avg. |
1.5 |
|
|
Peak |
1.3~8.9 |
||
|
Dynamic Fatigue Parameter (nd) |
-- |
Ntau tshaj los yog sib npaug rau 20 |
|
